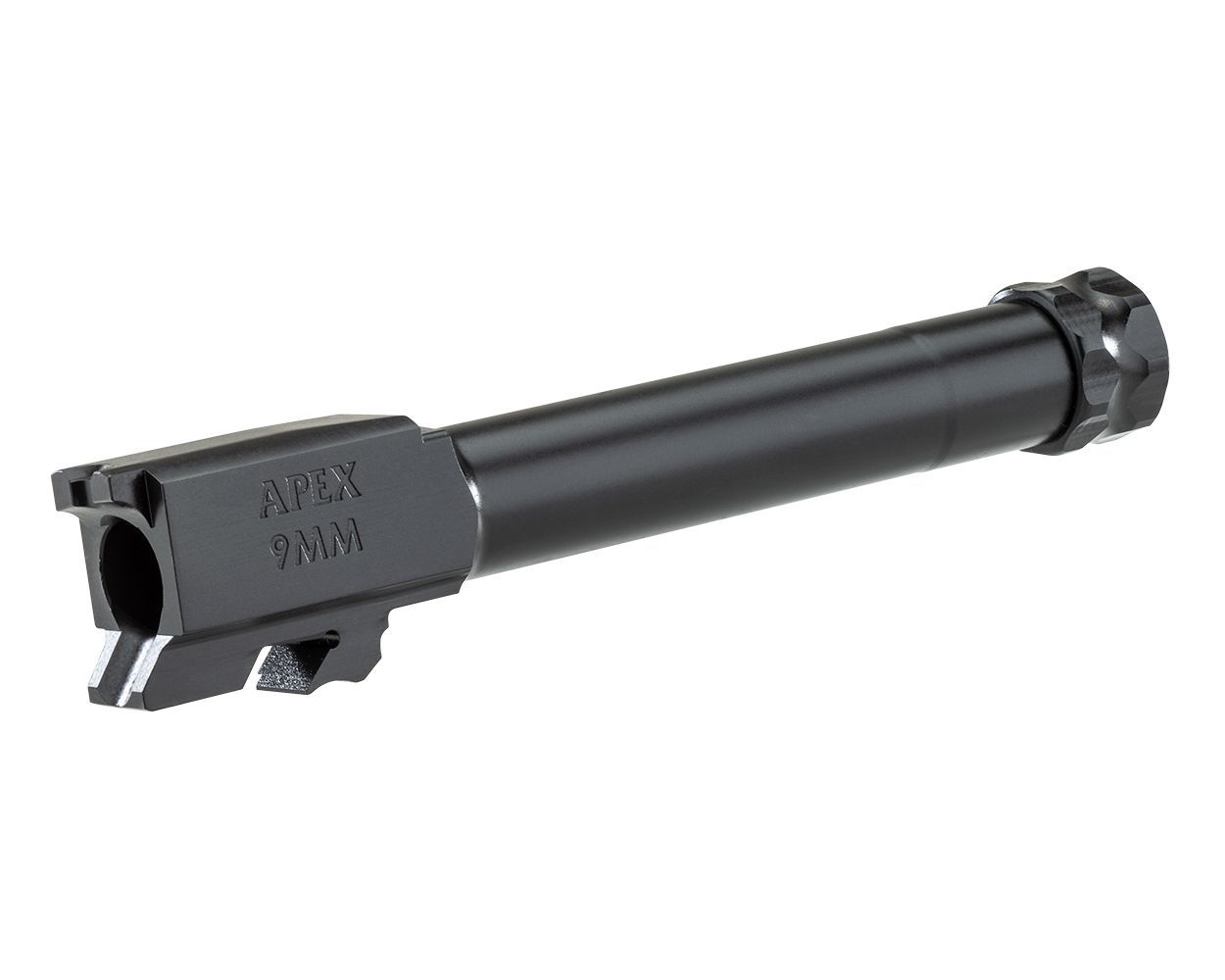

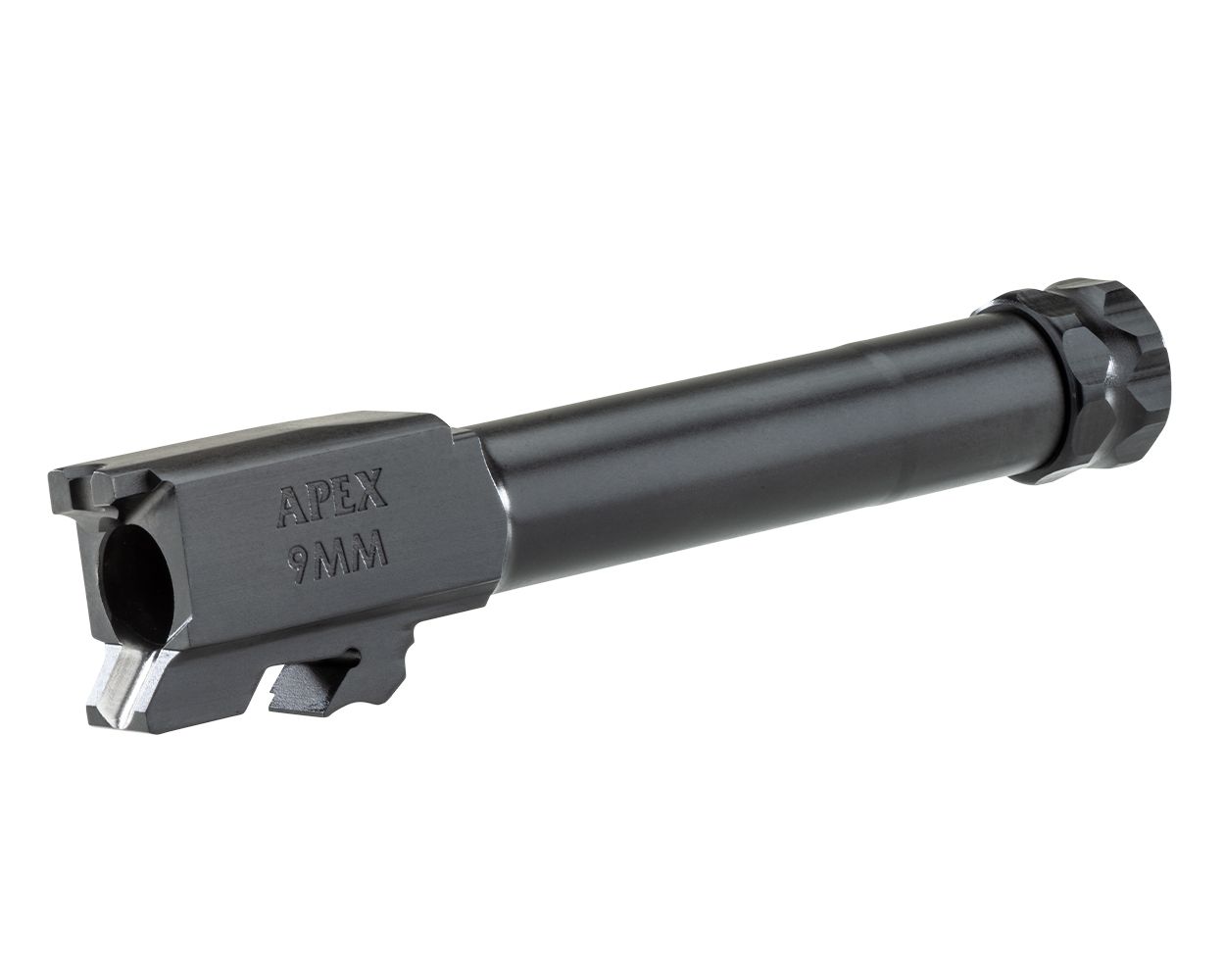

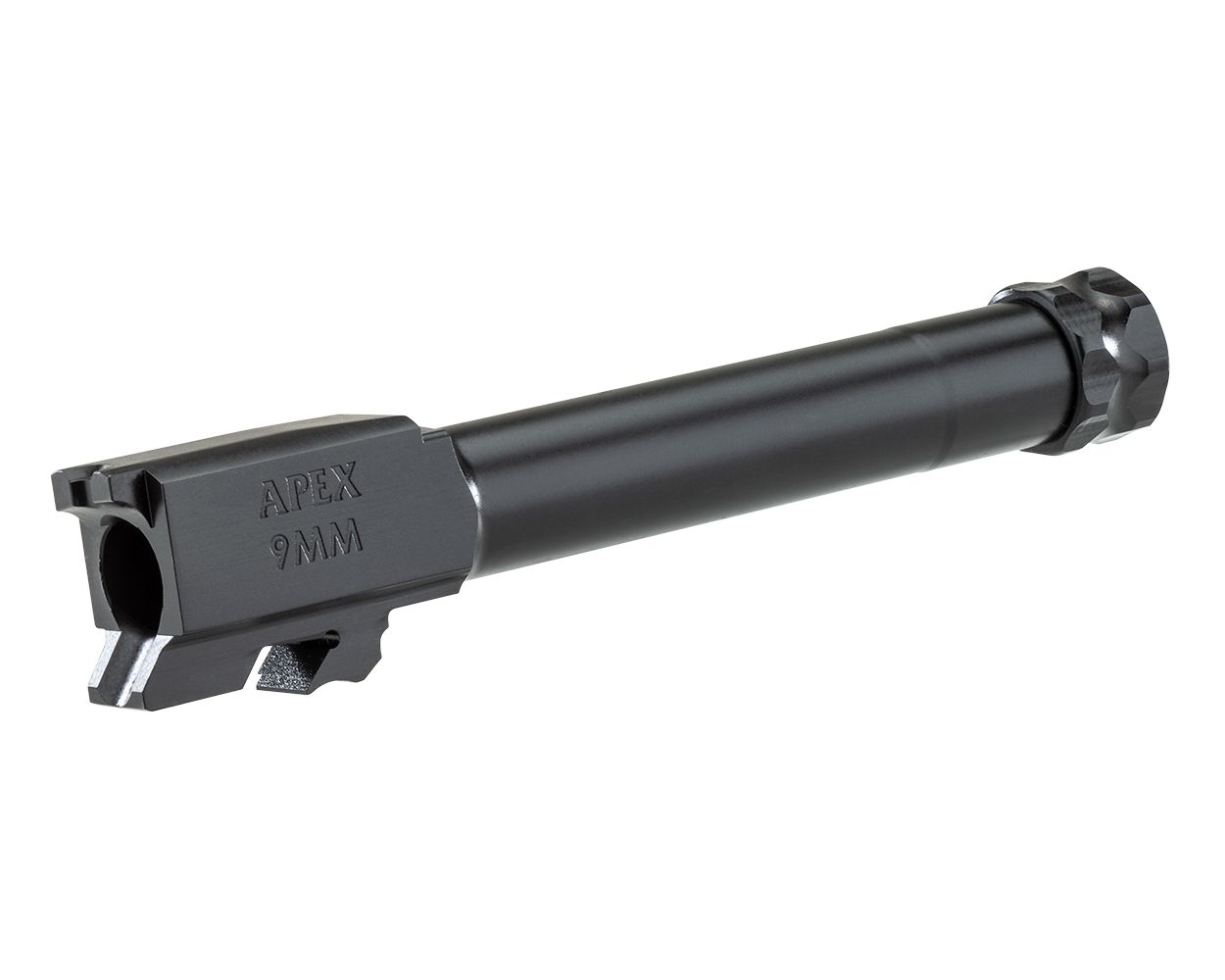

Apex 9mm Drop-In Threaded Barrel for M&P

If you’ve been looking to run a suppressor on your M&P pistol, the biggest hangup is usually the barrel. Factory barrels aren’t threaded, so you’re stuck with loud range sessions or buying a whole new upper. This drop-in threaded barrel from Apex solves that problem cleanly. It’s machined from a premium cold hammer-forged stainless steel blank, heat-treated, and finished in black. The 1:10” twist rate stabilizes most 9mm loads well, and the 1/2-28 thread pattern matches the vast majority of pistol suppressors and compensators on the market. A thread protector with a captive O-ring is included to keep the threads safe when the can isn’t attached.

This is a direct drop-in replacement – no fitting, no filing, no gunsmith visit required. Just field strip your M&P, swap the barrels, and you’re ready to run.

Compatibility

• Smith & Wesson M&P 9mm (full-size, compact, and Shield models – see notes below)
• Fits standard M&P slides with factory barrel lockup
• Will not fit M&P 2.0 Compact models with the 4” barrel – those use a different locking block
• If your slide has a Loaded Chamber Indicator (LCI), you will need to remove it or install the Apex No Profile LCI Block (sold separately)
• Not for sale to CA, CT, DE, Washington DC, HI, IL, NY, or WA

Key Features

• Cold hammer-forged 416 stainless steel – stronger and more consistent than cut-rifled barrels
• 1:10” twist rate – works great with 115gr, 124gr, and 147gr 9mm
• 1/2-28 threaded muzzle – the most common pitch for 9mm suppressors and comps
• Black nitride finish – corrosion-resistant, low-glare, and durable
• Drop-in fit – no gunsmithing required
• Includes thread protector with captive O-ring (won’t back off during shooting)

Install Difficulty: 2 out of 5

If you can field strip your M&P, you can install this barrel. Tools needed: none (maybe a punch for the LCI block if you’re removing it). The only tricky part is dealing with the Loaded Chamber Indicator on some models – that adds about 5 minutes and a small punch. Watch our install video on the product page for a walkthrough.

Frequently Asked Questions

Will this fit my M&P 2.0?

Yes, for full-size and compact 2.0 models (excluding the 4” Compact). The 2.0 uses the same barrel lockup as the original M&P. Just make sure your slide doesn’t have an LCI, or be ready to remove it.

Do I need to send my slide in for fitting?

No. This is a true drop-in barrel. You do not need to fit the hood, the locking lug, or the feed ramp. Remove your factory barrel, drop this one in, reassemble. That’s it.

What thread pitch is the barrel?

1/2-28. This is the standard for 9mm suppressors (like the SilencerCo Omega 9k, Rugged Obsidian 9, Dead Air Wolfman, etc.) and most 9mm compensators. The included thread protector uses the same pitch.

Shipping & Warranty: We ship within one business day. This barrel is covered by Apex’s lifetime warranty against defects in materials and workmanship. If it doesn’t fit your gun (and it’s the correct model), we’ll help you sort it out. No hassle, no runaround – we’re shooters too.
