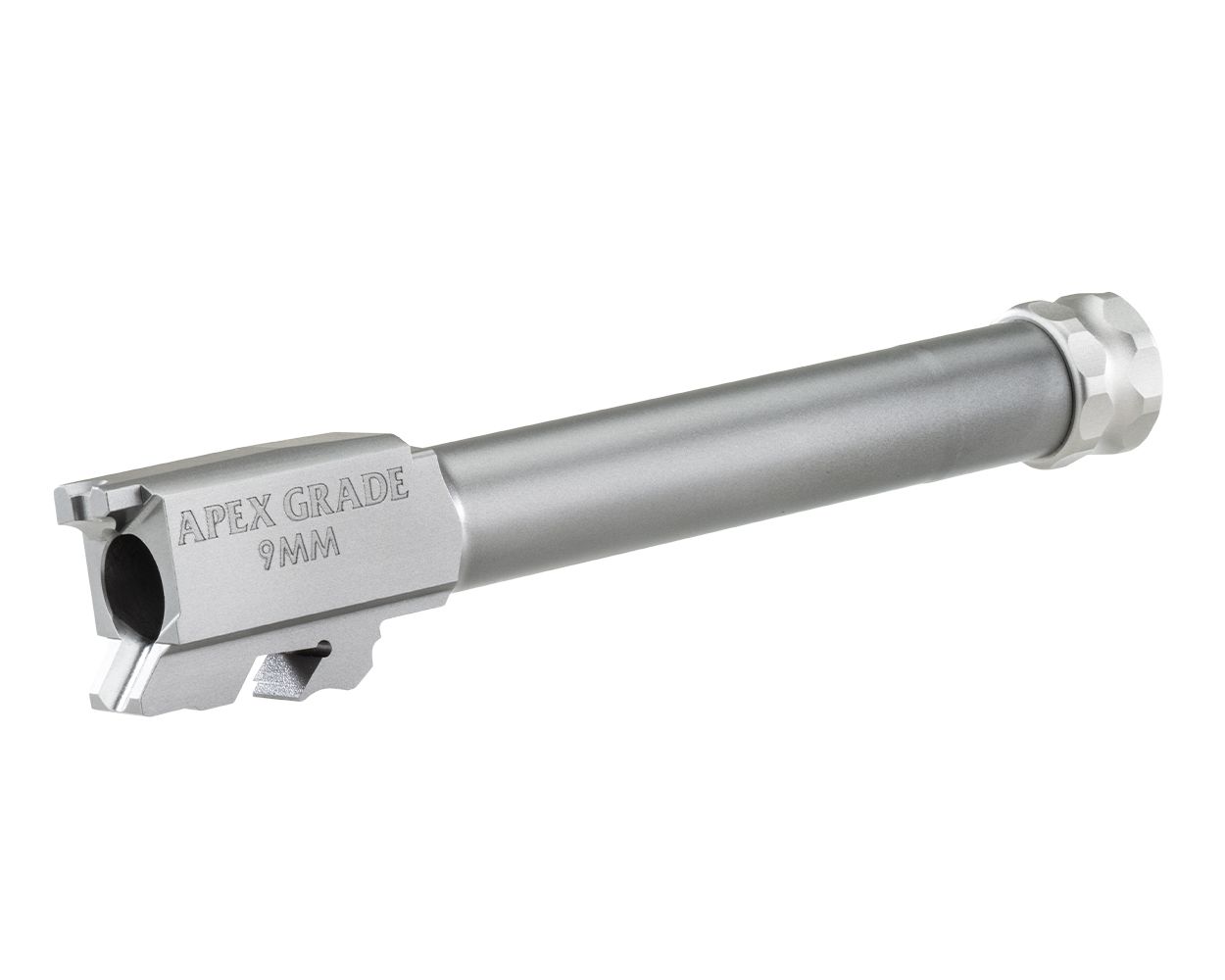

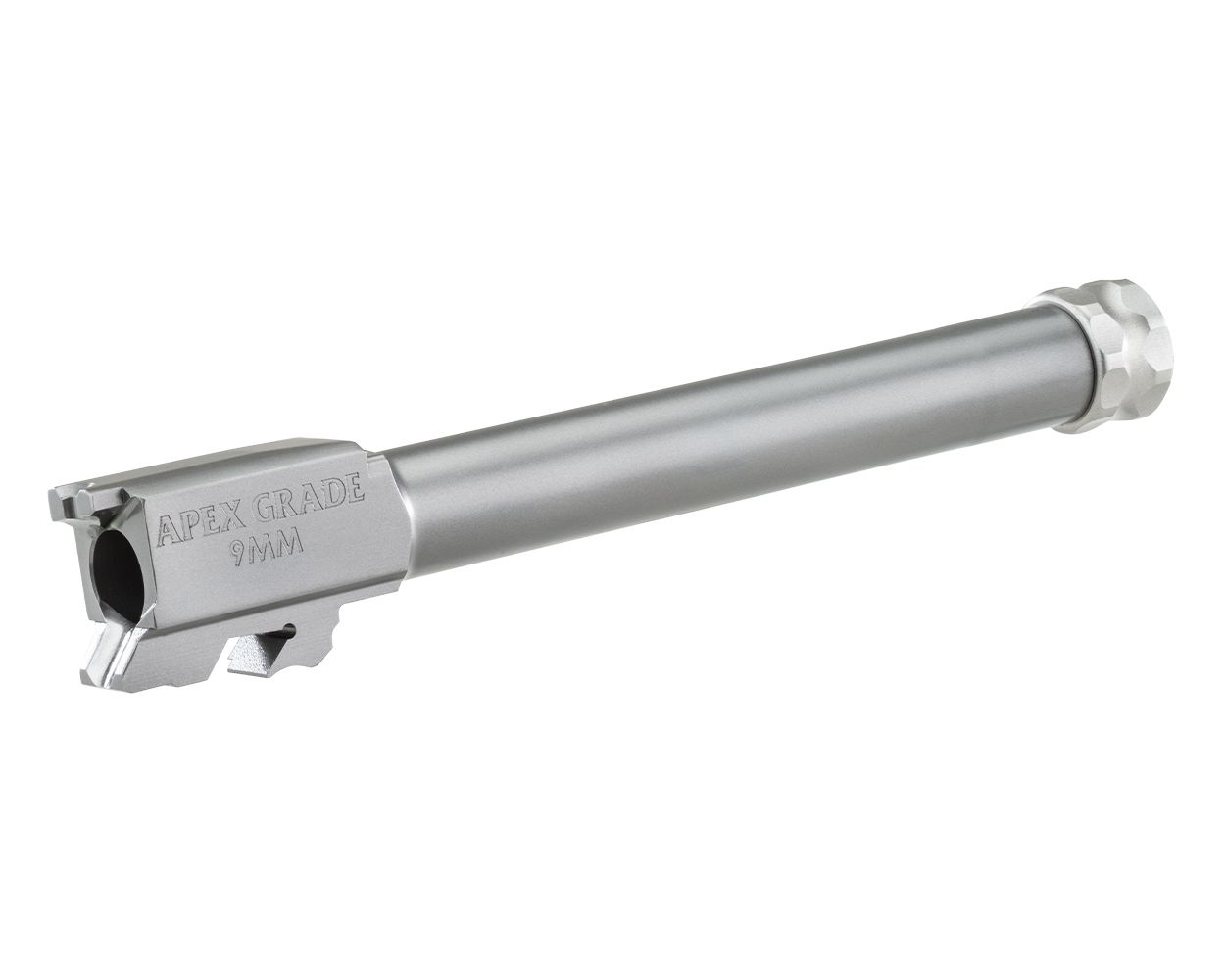

Apex Grade 9mm Gunsmith Fit Threaded Barrels for M&P

If you’re chasing every last bit of accuracy from your M&P, the barrel is where it starts. This Apex Grade 9mm Gunsmith Fit Threaded Barrel is designed for shooters who want to tighten their groups and add a suppressor or compensator without giving up reliability. The catch? It requires a proper fitting to both the slide and frame – but once that’s done, you can expect sub-one-inch, five-shot groups at 25 yards (provided you do your part). This barrel solves the problem of factory barrels that leave accuracy on the table, especially for competition shooters or anyone running a can who needs consistent point of impact.

Compatibility

• Smith & Wesson M&P 9mm (full-size, compact, and standard models)
• Smith & Wesson M&P M2.0 9mm (full-size, compact, and standard models)
• Will also work as a caliber conversion barrel in M&P and M2.0 pistols originally chambered in .40 S&W or .357 SIG – you’ll just need a 9mm magazine for proper feeding
• Important: If your slide has a Loaded Chamber Indicator, you’ll need to either remove it or install the Apex No Profile Loaded Chamber Indicator Block (sold separately)

Key Features

• Machined from heat-treated, premium cold hammer-forged stainless steel barrel blanks – tough and corrosion-resistant
• 1:10” twist rate, optimized for standard 9mm loads
• Apex’s proprietary, patented locking geometry for consistent lockup and repeatable accuracy
• 1/2-28 threaded muzzle with included white stainless steel thread protector
• Gunsmith fit required – not a drop-in. Expect to do some hand-fitting to the slide and frame for best results
• Trusted for duty use by multiple law enforcement agencies

Install Difficulty

Difficulty: 4 out of 5 – This is a gunsmith-fit barrel. You’ll need files, stones, or a Dremel with fine bits, plus some patience. If you’ve never fitted a barrel before, we recommend having a competent gunsmith do it. Basic tools: fine flat file, 400-600 grit sandpaper, calipers, and a vise. Plan on 1-2 hours if you’re handy.

Frequently Asked Questions

Will this barrel fit my M&P 1.0 without modification?

It will require fitting to the slide and frame, even on first-gen M&Ps. It’s not a drop-in. The locking geometry is designed to be hand-fitted for maximum accuracy, so don’t expect to just swap it in.

Can I use this barrel with a suppressor?

Yes – the 1/2-28 threaded muzzle works with most 9mm suppressors and compensators. Just make sure your suppressor is rated for the barrel length and thread pitch. The included thread protector keeps the threads clean when not in use.

Do I need to change anything else if I use this as a caliber conversion barrel?

If you’re converting a .40 S&W or .357 SIG M&P to 9mm, you’ll need 9mm magazines (they’re widely available). We recommend using this setup for training and practice – not for carry – since conversion barrels can have subtle timing differences. For dedicated defense use, stick with the original caliber.

Shipping & Warranty

We ship this barrel free within the continental US. All Apex products come with the manufacturer’s warranty against defects in materials and workmanship. If you have fitment questions, give us a call – we’re a family shop and happy to help.
