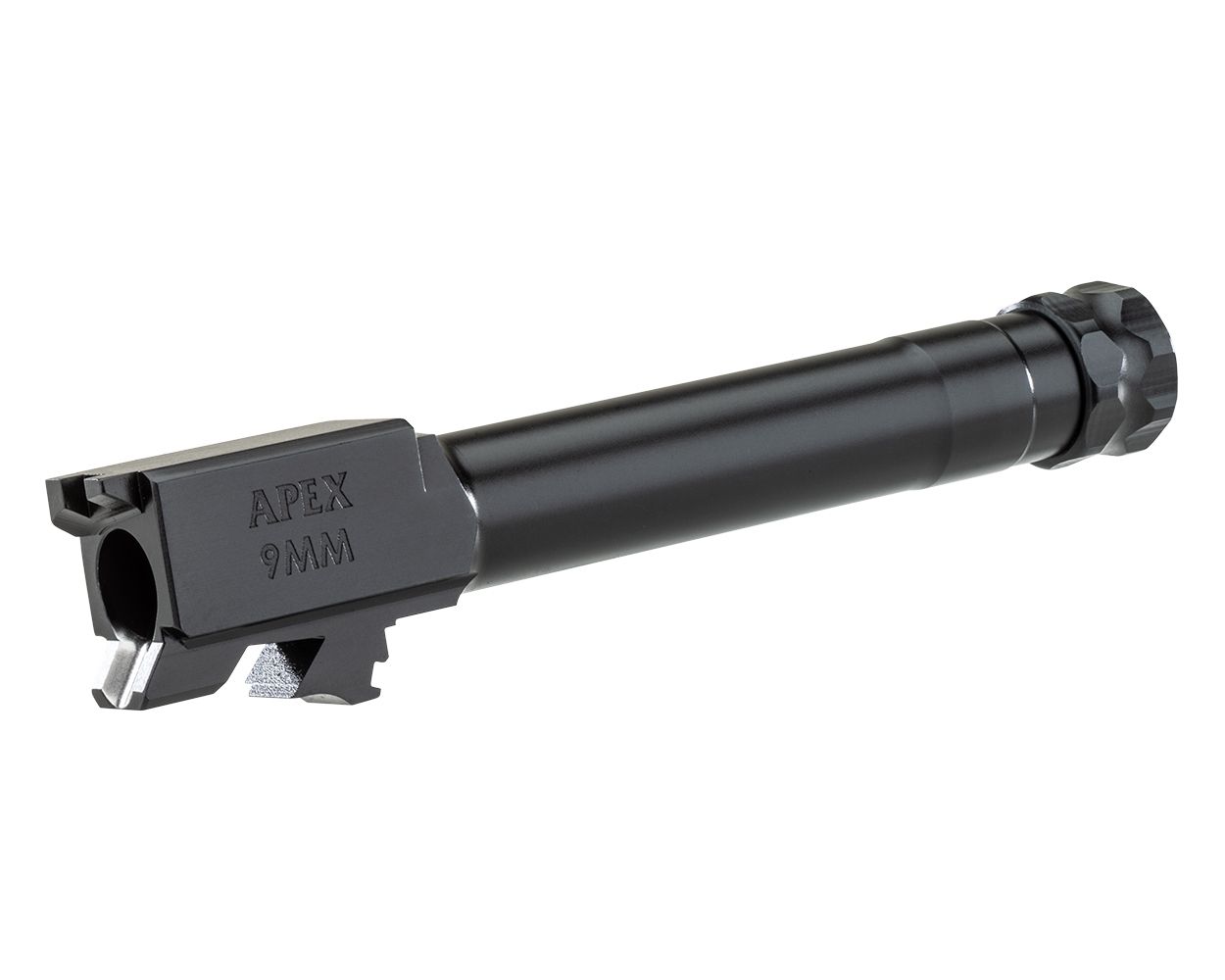

Apex 9mm Drop-In Threaded Barrel for SD and SD VE

If you own an S&W SD9 or SD9 VE and you’ve been wanting to run a suppressor or compensator, you’ve probably run into the same problem: the factory barrel isn’t threaded, so you’re stuck with a bare muzzle. This drop-in threaded barrel solves that problem by giving you a simple, no-gunsmithing way to add a 1/2-28 threaded muzzle to your pistol. It’s machined from heat-treated, button-rifled steel blanks with a 1:10” twist rate, and it’s finished with a durable melonite coating to stand up to holster wear and cleaning solvents. It comes with a thread protector that has a captive O-ring to keep it snug. Best of all, it drops right into your existing slide with no fitting required—just field strip your pistol, swap barrels, and you’re ready to run.

Compatibility

• S&W SD9 (full-size, 9mm)
• S&W SD9 VE (full-size, 9mm)
• Does NOT fit SD40, SD40 VE, or any Shield models
• Thread pattern: 1/2-28 (standard 9mm suppressor/comp thread)
• Twist rate: 1:10”

Key Features

• Drop-in fit – no hand-fitting, no barrel lapping, no trip to a gunsmith
• Melonite finish – corrosion-resistant, low-glare, and tough
• Heat-treated button-rifled steel – consistent accuracy and long service life
• Thread protector with captive O-ring – stays put, won’t walk off during shooting
• Loaded Chamber Indicator note: If your slide has an LCI, you’ll need to either remove the LCI completely or install the Apex No Profile LCI Block (sold separately) – the barrel is not cut for a standard LCI tab

Install Difficulty

Difficulty: 1 out of 5 – Basic field-strip skill level. Tools needed: none (just your hands and a punch or small screwdriver if you need to remove the LCI). If your slide has a loaded chamber indicator, you’ll spend an extra 2 minutes popping it out. Otherwise, it’s a straight swap.

Frequently Asked Questions

Will this fit my S&W SD40 or SD40 VE?

No. This barrel is specifically for 9mm SD9 and SD9 VE pistols only. The 40-caliber models use a different barrel profile and a different breech face. Do not try to fit it into a .40 slide.

Do I need to buy anything else to use this barrel with a suppressor?

You’ll need a 1/2-28 direct-thread suppressor mount or a 1/2-28 piston for your suppressor. If your slide has a loaded chamber indicator (LCI), you must either remove the LCI tab entirely or install the Apex No Profile LCI Block to keep the barrel from binding. No other parts are required.

Can I use this barrel without a suppressor?

Absolutely. It works fine as a standard barrel. The threaded muzzle will be exposed, but the included thread protector keeps the threads clean and protects them from damage. Many shooters use it just for the look or as a base for a compensator.

Shipping & Warranty

We ship this barrel free to all 50 states (except CA, CT, DE, Washington DC, HI, IL, NJ, NY, and WA where we cannot ship). All barrels come with a manufacturer’s warranty against defects in materials and workmanship. If you have any issues, just give us a call or email – we’re a small family shop and
